The RN’s frigates are supposed to be the backbone of the fleet but it has become increasingly difficult to keep the ageing Type 23s going while their replacements are some years away from commissioning. Here we look at the current situation and the implications for future fleet strength.
Dropping the baton
The original plan for a smooth transition from the legacy Type 23 frigates to the new Type 26 and Type 31s has started to unravel. The RN has already officially retired 4 frigates long before their replacements are available (HMS Monmouth, Montrose, Westminster and Argyll) taking the number left in commission down to 9.
HMS Northumberland was handed to Babcock for a major upkeep period in March of this year but unconfirmed reports say that she has been found to be beyond economical repair. Northumberland is just one year younger than HMS Westminster and completed her LIFEX about 12 months after Westminster. She was run hard between 2018-24 and the RN now faces the exact same dilemma about whether to spend £millions to keep her going for another 5 years or so of service. In the case of Westminster, she was not deemed worth repair, the same conclusion will probably be reached with Northumberland, reducing frigate numbers to 8.
HMS Lancaster is supposed to decommission sometime in 2025-26. She is the oldest surviving Type 23 and has been very active and successful as the forward-deployed frigate in the Gulf. Depending on when she finally goes and what happens to HMS Northumberland, frigate numbers could potentially ‘bottom out’ at just 7 ships in 2026.
Royal-Navy-Frigate-Schedule-2024Back in 2015, it was stated that the frigate force would be maintained at 13 ships. A budget line was established and most in DE&S and Navy believed in good faith that all 13 of the Type 23s would receive LIFEX refits and all but two have would the machinery upgrade (PGMU). This investment was expected to ensure they could serve up to 35 years, with the youngest ship, HMS St Albans decommissioning around 2035. Unfortunately, as the life extension programme got underway, it became increasingly obvious that in most cases, the scale and complexity of the remedial work had been underestimated. Worse still, despite the major refurbishment and equipment upgrades carried out during these LIFEX refits, after about five years of further service, some of the vessels have deteriorated beyond worthwhile repair.
The Type 23s had a hull life designed for just 18 years. Essentially the steel hull plating was kept as thin as possible, with the advantage of lower initial cost and reduced displacement. However, despite the protection of advanced marine paints and cathodic protection systems, corrosion of steel in salt water is inevitable over time. Additionally, extended spells at sea, particularly towed array patrols in the North Atlantic cause stress on the hull structure which leads to metal fatigue and cracks. To the designers of the Type 23, back in the late 1980s it would have been inconceivable that these ships would have to serve so long and, following the delivery of HMS St Albans, the RN would fail to lay down a new frigate for 17 years.
Besides capability insertion, work done during the LIFEX refits has included hundreds of steel inserts, replacing corroded hull structural pieces and hull plating. Also replaced were huge lengths of pipework, valves and masses of wiring as well as motor and plant refurbishments. The extent of the remedial work varied considerably between ships, mainly depending on age. The original cost estimate for each LIFEX project was around £35M (excluding the engine upgrades) but this has been exceeded in most cases. HMS Iron Duke was the most extreme example, She did not receive new engines and required 2,000 steel inserts to make her seaworthy in a package that eventually cost £103M. The official figure for HMS Somerset was £60.7M, although she has continued to suffer from defects that have only now been rectified two years after her LIFEX refit was complete.
The PGMU also proved to be more complex than first thought. Only 3 frigates have received the new engines so far (HMS Richmond, St Albans and Sutherland) with HMS Kent currently about to start upkeep and have PGMU. In terms of future reliability, this upgrade is especially critical and ships still running on the ancient Paxman Valenta diesels need more maintenance and have lower availability. It is unclear if it will be considered worth giving HMS Portland and Somerset PGMU.
A decade of risk
In broad terms, the RN is now into a 10-year period where achieving the number of 13 frigates in commission is either impossible or very uncertain. For the next few years, there is little that can be done to avoid hitting a rock bottom of 8 or even 7 frigates. Beyond about 2028 there should be improvement but it’s very difficult to forecast reliably how quickly numbers increase. This will depend on whether the remaining Type 23s can stagger on into the mid-2030s and if the Type 31s and Type 26 are delivered precisely on time. The indications that the Type 23s will last that long are not encouraging and BAE Systems and Babcock must hand over complex first-of-class vessels and the follow-on ships with no slack in the schedule to allow for unexpected challenges.
Both programmes have already moved to the right. The delays to Type 26 have been officially recognised and a new schedule was agreed some time ago. However, the Type 31 project has clearly also encountered some delays as the original forecast was that HMS Venturer would be in the water by Q2 2024. Just how much Type 31 is behind schedule is unclear at present with no official comment forthcoming about the revised launch date.
To put the current frigate strength in context, the 1998 SDR, (led by Lord Robertson who has now been appointed to conduct the 2025 review) stated that the RN needed 20 frigates (and 12 destroyers). This was at a time when the world was far more stable and peaceful than it is today. By 2010 the arbitrary figure of 13 frigates had become ‘the requirement’ and has become the accepted force strength.
In the 2020 Integrated Review, the Type 32 frigate concept became public and there was even hope that the RN could have up to 18 frigates by the mid-2030s. Although Type 32 remains an aspiration, the gloomy public finance ‘mood music’ suggests that the programme is very unlikely to survive the coming defence review. There is little chance there will be a big uplift in spending and the RN has to prioritise SSN-AUKUS, MRSS and the Type 83 destroyer programmes against a backdrop of underfunded black holes in the defence equipment plan. While of course the RN needs more than 13 frigates, for the purposes of this analysis we must assume Type 32 will be axed or deferred.
Operational impact
The impact of the declining frigate force can be seen simply by observing the fall in RN warship activity over the past 12 months. Any enquiry directed to the MoD about warship availability is met with the bland catch-all statement: “the Royal Navy continues to fulfil all its operational commitments”. One has to assume that those mandated operational commitments must have been considerably scaled back (without any public announcement) in recent years.
While improvements to maintenance routines and the Power Improvement Project will see Type 45 destroyer availability improve in the next few years, they cannot perform the key ASW task of the frigates. Assuming mechanical reliability does not decline further, a frigate force of between 7-9 ships will generate about 3-4 ships that are operational, typically allowing 2-3 to be at sea or deployed.
A key task for RN frigates is the Towed Array Patrol Ship (TAPS) which monitors Russian submarine activity in the North Atlantic and closer to home. This can only be carried out by one of the 7 remaining Type 23s equipped with the highly effective sonar 2087. Supporting the nuclear deterrent boat on patrol is also a key role for the frigates. Compounded by the lack of available SSNs, RN assets to detect and deter adversary submarine activity are currently at the absolute bare minimum. Just when the UK needs to strengthen its ASW capability, further reducing the frigate force is the very opposite of what is needed.
Two or three available frigates is a severe limitation on a Navy with global ambitions. At least for the next few years, if the RN is going to mount credible global carrier strike (or littoral strike) operations then it must rely on allied nations to fill the gap in ASW escort capability. It is worth noting that despite their age, the Type 23s are still among the best submarine hunters with few other nations in NATO with modern equivalents that can match their ASW performance.
It seems unlikely that the RN will be able to immediately replace HMS Lancaster in the Gulf when she decommissions and the Kipion frigate may have to be gapped for a while until a Type 31 is ready to take on this task. HMS Iron Duke, once earmarked as the replacement, may instead need to be fitted with S2087 and its complex supporting kit (removed from HMS Westminster) to maximise the number of precious frigates with ‘tails’.
Fingers crossed
Everyone will have their own theory about who are the villains responsible for this sorry state of affairs. Decades of government underfunding the defence is obviously a key part of the story but wider strategic missteps have all played a part. The focus on COIN operations and the belief that state-on-state-on-state warfare was a thing of the past in the early 21st Century did not help. Some will argue rather simplistically the problem is the result of RN’s acquisition of the aircraft carriers. More credibly perhaps, the RN bears some responsibility for the drawn-out gestation, ever-changing requirements, delays and prevarication in ordering the Type 26 frigates. Others will blame industry for painfully slow deliveries of new ships and interminable maintenance periods.
A great deal of credit should go to the RN for establishing the Type 31 project in 2015 against considerable opposition. Although cost was the initial driving factor, at least there are now two frigate production lines otherwise the situation would be even more dire. The Type 31 is not an ASW specialist but frigates offer an all-round suite of capabilities that will always be in great demand.
There are limited immediate options for rectifying this precarious situation. Emergency funding might help accelerate the delivery of new ships slightly but there are limits to industrial capacity, constrained by the number of skilled people available to the shipyards and supply chain. Unconventional off-board systems, UUVs and UAS embarked on vessels of opportunity could all help fill the gap but there is no substitute for a dedicated frigate with powerful sensors, a large ASW helicopter and a well-trained crew.
Short of offering the Chilean Navy a ridiculous amount of money to buy back the 3 Type 23s that Geoff Hoon sold off, there’s not a lot that can be really done at this point. We just need to hope and pray that the Type 26s and Type 31s don’t arrive too late.
Hope is not a strategy, and lessons need to be learned to avoid a future repeat.

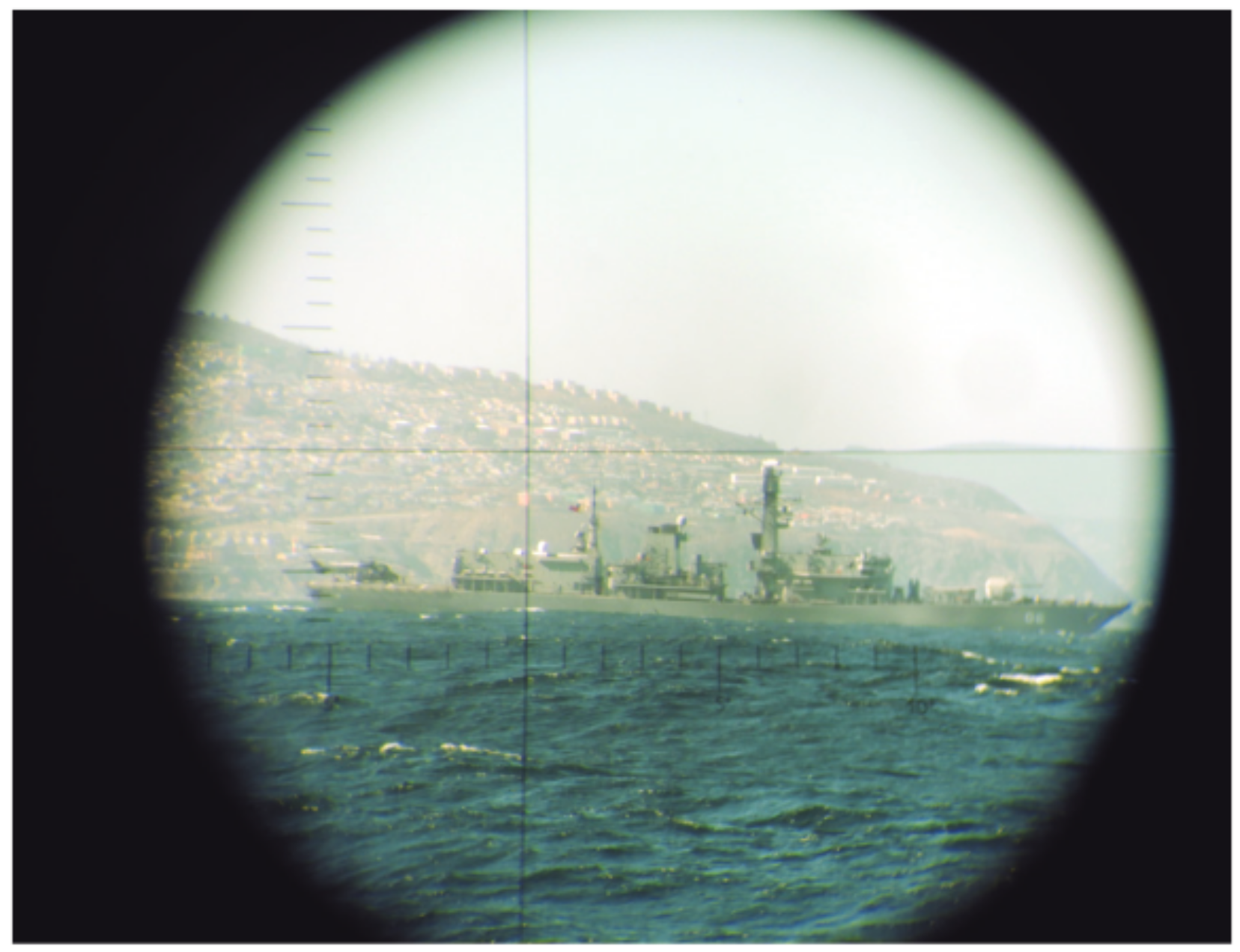

Buying back those Type 23s Chile seems a much more practical option than any of the other suggestions for buying/borrowing foreign ships or getting new ships magically built in no time. At least they are like for like.
